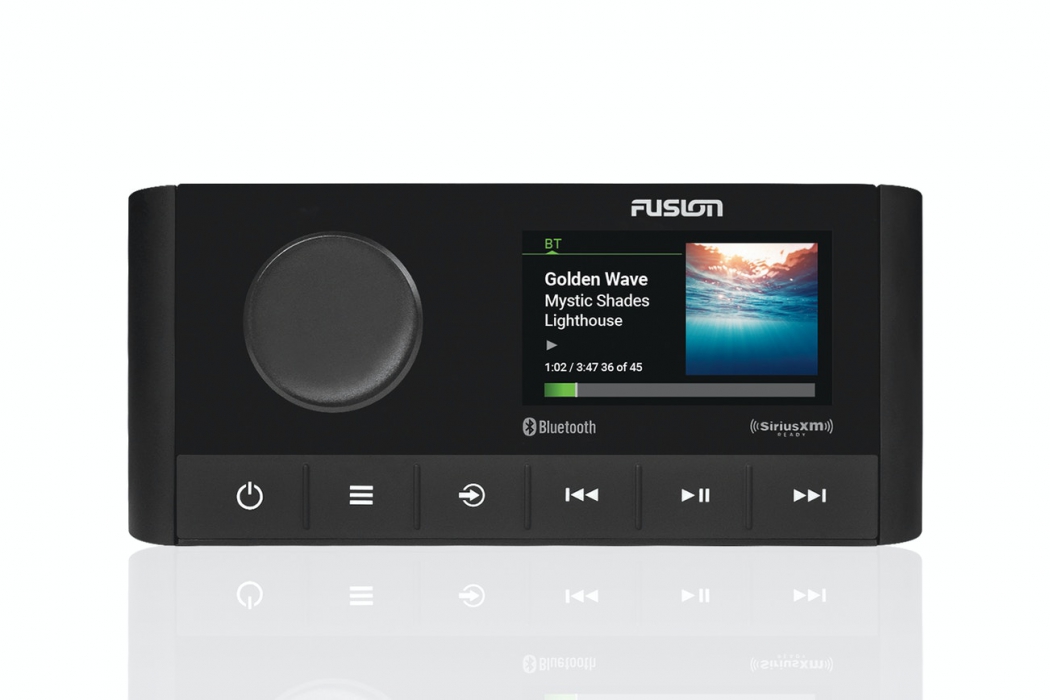

MS-RA210 Marine Entertainment System With Bluetooth & DSP
New aesthetics, compact design & enhanced audio capabilities
Sources: AM / FM / Bluetooth / USB / AUX / iPhone / iPod / MTP / DAB+ Ready (Requires MS-DAB100A) / SiriusXM-Ready (Requires SiriusXM Connect Vehicle Tuner)
Techninė specifikacija
| Display | 2.7" optically bonded color LCD |
|---|---|
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect Vehicle Tuner) / DAB+ ready (available in Europe and Australia only) Note: SiriusXM and DAB+ do not support traffic or weather. |
| Digital Signal Processing (DSP) | Yes |
| Fusion speaker, subwoofer and amplifier profiles preconfigured via DSP | Yes |
| Fusion-Link Control (Wireless) | Yes |
| Bluetooth Wireless Technology | Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols) |
| SiriusXM-Ready | Yes |
| ANT® Technology | Yes |
| NMEA 2000® (Control via MFD - Fusion-Link) | Yes |
| Works with NRX Remotes | Yes |
| Fits DIN Cut-Out | Yes - requires adapter plate |
| Water Resistance (IP rating) | IPX6 and IPX7 from the front panel when installed correctly |
| Internal Amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak Power | 200 W max |
| Multi-Language User Interface | Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish |
| Auxiliary Inputs | 1 x RCA input (AUX) |
| USB 2.0 Port | One USB 2.0 port (for phone charging / media playback) |
| SiriusXM | One SiriusXM port (requires optional SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM / FM radio | One Motorola antenna connector port |
| Speaker Channels | 2 x channels, 1 pair per zone (2 zone amplified) |
| RCA Pre-Out (Left, Right and Subwoofer) | 2 zones (1 x L+R per zone, 1 x Sub per zone - All require external amplification) |
| Operating Voltage | +10.8V - 16V DC |
| DAB+ Ready | Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported |
| Software Updates | Available via USB - from Fusion-Link app on a phone connected via USB or from a USB flashdrive. |
| Physical Dimensions: Width x Height x Depth (incl. Volume Encoder) | 157mm x 68mm x 126.6mm [6-3/16" x 2-11/16" x 5"] |
| Mounting Dimensions: Width x Height x Depth | 135mm x 52mm x 107.6mm [5-5/16" x 2-1/16" x 4-1/4"] |
