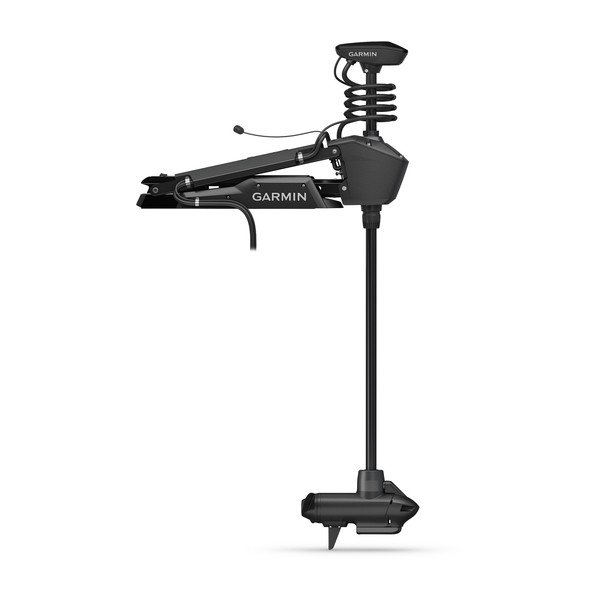

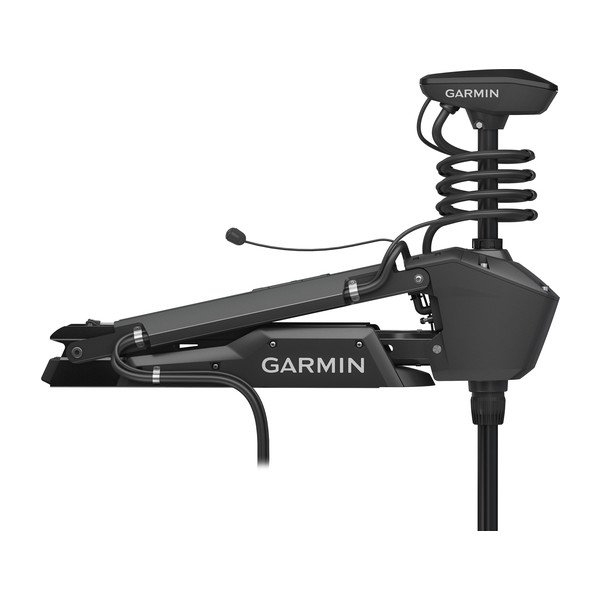

Garmin Force Trolling Motor 100lbs, 57"
FISH WITH FORCE
Get on fish faster, and stay on the water with the most powerful, most efficient trolling motor available — and it’s quiet, too.
Force is more efficient at 24 V than the competition’s 36 V system.
Wirelessly connect to your Garmin chartplotter, and open up a world of possibilities.
It comes with sonar built in, too? That’s just too good to be true.
All the control of a cable-steered pedal without the cable.
Just point the handheld remote where you want to go, and Force will take you there.
Powerful. Efficient. Quiet.
HIGH-POWERED
Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.
REMARKABLE EFFICIENCY
The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.
QUIET ABOVE AND BELOW THE WATER
The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.
WATER-RESISTANT, FLOATING REMOTE
The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.
Fishing will never be the same.
ROBUST AND EASY TO USE
The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.
WIRELESS CHARTPLOTTER INTEGRATION
Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.
INTEGRATED SONAR
Force comes with a built-in transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. See the specs tab for more details on additional sonar support.
BUILT-IN AUTOPILOT
The built-in autopilot, with integrated heading sensor and GPS, provides anchor lock, heading hold and cruise control. Just set your track, and it will guide you along your course.
Techninė specifikacija
Motor |
|
| Shaft length | 57" |
| For use in | freshwater, brackish water and saltwater |
| Mounting location | bow |
| Mount style | scissor style mount |
| Max thrust | 100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
| Voltage | 24 V or 36 V |
| Electric steering | yes |
| Lift-assist | dual gas springs |
| Built-in heading sensor | yes |
| Built-in GPS | yes (high-sensitivity GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating (components above water) | IPX7 |
| Wireless remote | yes (included) |
| Foot pedal | yes (included) |

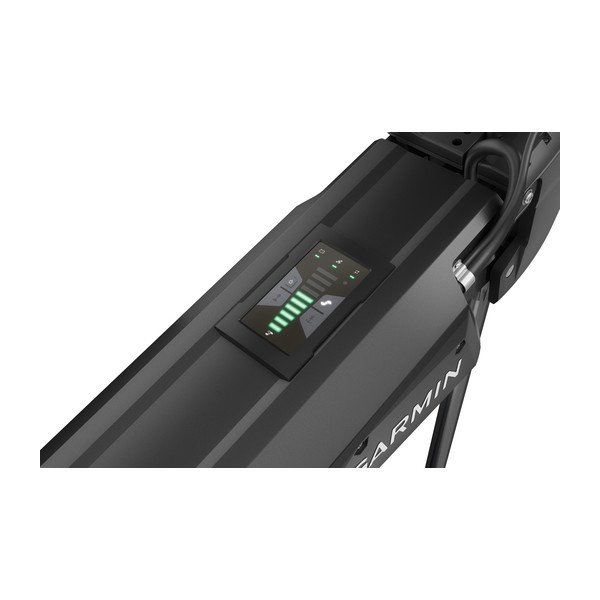

| Battery indicator | yes |
| Variable speed control | yes (20 steps) |
Sonar |
|
| Frequencies supported | CHIRP sonar: High-wide CHIRP (150-240 kHz) ClearVu: Ultra-high definition 800 kHz SideVu: Ultra-high definition 1200 kHz and 455 kHz |
| Partial frequencies supported | CHIRP Sonar: High-wide CHIRP (150-240 kHz) ClearVü: 800 kHz SideVü: 455 kHz |
| Transmit power | 350 W |
| Maximum depth | CHIRP sonar: 800' ClearVü: 200' Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30' 455 kHz SideVü: 500' to each side; 1000' total |
| Depth/speed/temperature | depth and temperature |
| Number of pins | 12-pin (orange connector) |
AutoPilot Features |
|
| Route following | yes |
| Anchor lock | yes |
| Heading hold | yes |
| Cruise contorol | yes |
| Gesture features | yes (manual+, heading hold+, jog+) |

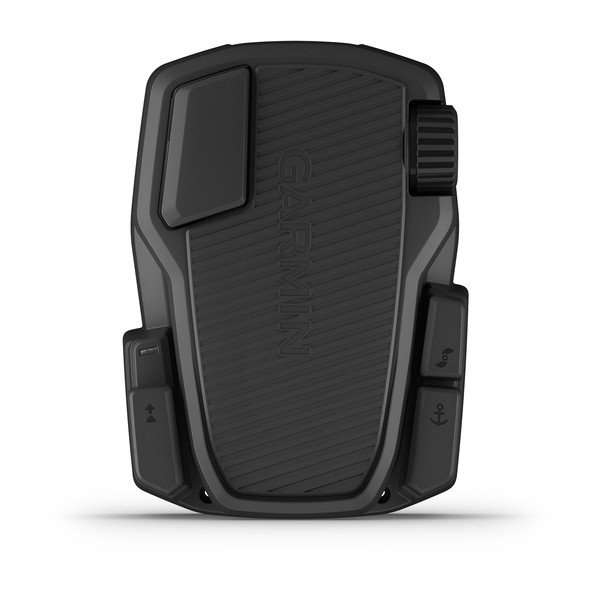

Foot Pedal |
|
| Dimensions | 12" L x 9" W x 4 1/2" H |
| Wireless communication | yes |
| Power installation | 12V wired or battery powered (2 AA) |
| AA battery life | 1 full season |
| Waterproof rating | IPX7 |
| Adjustable pedal resistance | yes |
Remote |
|
| Display size | 1.2" (30.4 mm) diameter |
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user programmable keys | yes |
| Autopilot feature control | yes |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43.2 weeks |
| Floats | yes |
